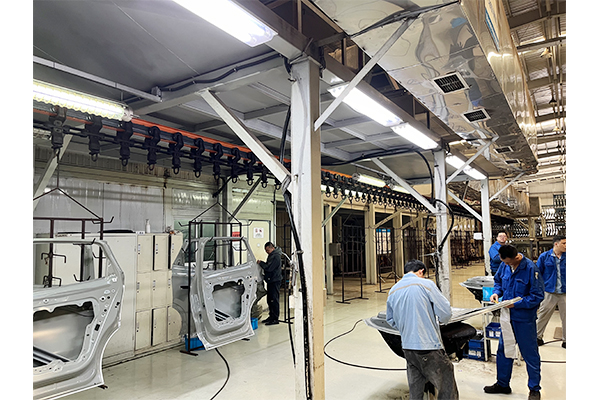

PVC Glue Coating And Drying Line
Basic information of PVC Line 1Annual design capacity: 800,000 electrophoretic parts.
Maximum passing size (unit: mm): L3200×W1500×H1600.

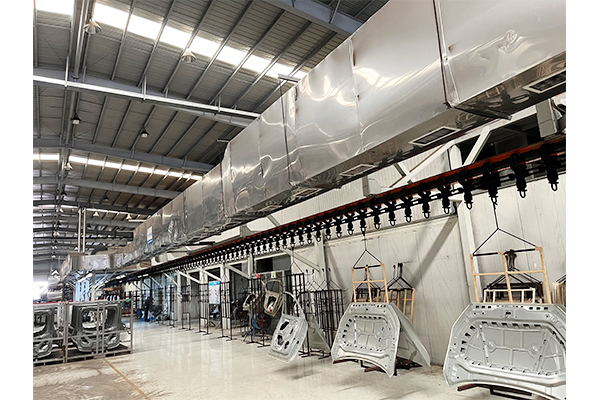

The conveyor chain adopts PT160 die-forged chain and matching PT160 slide, with a single-point load-bearing capacity of 500KG and a single-point hook distance of 320mm.
Year of completion: 2016 (environmental protection and other procedures are complete).
-
Process speed and capacity
Adopting continuous operation, one hanger hangs 2 parts on a double-sided single layer, and the production chain speed is 1.2 meters per minute (Note: 0.5-2.5m/min variable frequency adjustable), with an average of 32 hangs and 72 finished products per hour. The time for the assembly line to run one circle is 80 minutes. Estimated capacity: 860 pieces in a single shift of 12 hours, and 1720 pieces in a double shift of 24 hours.
Business description

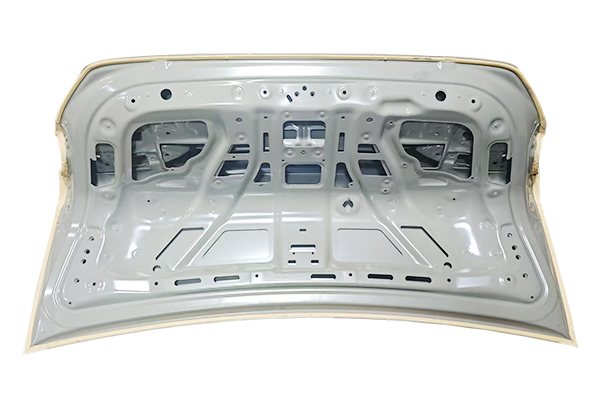

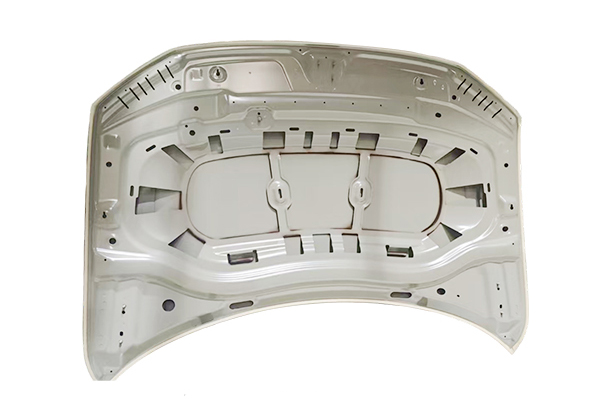

This production line has reliable product quality, an annual surplus capacity of 400,000 pieces, and undertakes PVC glue drying business such as automotive parts.
